Feature

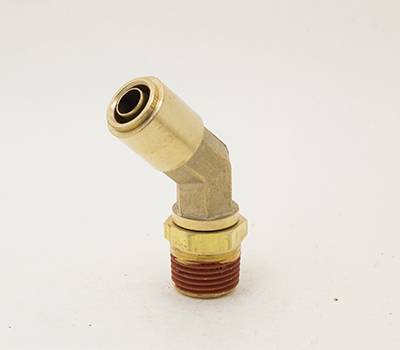

Made of brass. D.O.T. push in tube fittings meet D.O.T. FMVSS 571.106 Air Brake Performance Requirements and SAE J1131, J2494-1 & J2494-3 Air Brake Performance Requirements.
Simple tube connection and disconnection – no tools required.
Elbows and tees available wtih 360째 swivel.
Reusable: Can be connected and disconnected several times
Specification
| Fluid Admitted | Air, Vacuum |
| Working Pressure | 0—1.0MPa | 0—150psi |
| Proof Pressure | 3.0Mpa | 435psi |
| Negative Pressure | -100Kpa | -29.5 In Hg |
| Working Temperature | -40—100°C | -40～220°F |
| Applicable Tube | PU / PA |
| Body | Brass/ Forged Brass |
| Seal, O-ring | FKM(Viton) |
| Inch Tube ØD | ||||||
1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ |
UNF | NPT-60°American Standard Taper Pipe Thread | |||
10-32 UNF | 1/8 NPT | 1/4 NPT | 3/8 NPT | 1/2 NPT |
Model No. | Push-in Tube ΦD(Inch) | Thread (NPT) |
DPLH 1/8-U10 | 1/8″ | 10-32 UNF |
DPLH 1/8-N01 | 1/8″ | 1/8 NPT |
DPLH 1/8-N02 | 1/8″ | 1/4 NPT |
DPLH 5/32-U10 | 5/32″ | 10-32 UNF |
DPLH 5/32-N01 | 5/32″ | 1/8 NPT |
DPLH 5/32-N02 | 5/32″ | 1/4 NPT |
DPLH 3/16-U10 | 3/16″ | 10-32 UNF |
DPLH 3/16-N01 | 3/16″ | 1/8 NPT |
DPLH 3/16-N02 | 3/16″ | 1/4 NPT |
DPLH 3/16-N03 | 3/16″ | 3/8 NPT |
DPLH 1/4-U10 | 1/4″ | 10-32 UNF |
DPLH 1/4-N01 | 1/4″ | 1/8 NPT |
DPLH 1/4-N02 | 1/4″ | 1/4 NPT |
DPLH 1/4-N03 | 1/4″ | 3/8 NPT |
DPLH 1/4-N04 | 1/4″ | 1/2 NPT |
DPLH 5/16-N01 | 5/16″ | 1/8 NPT |
DPLH 5/16-N02 | 5/16″ | 1/4 NPT |
DPLH 5/16-N03 | 5/16″ | 3/8 NPT |
DPLH 5/16-N04 | 5/16″ | 1/2 NPT |
DPLH 3/8-N01 | 3/8″ | 1/8 NPT |
DPLH 3/8-N02 | 3/8″ | 1/4 NPT |
DPLH 3/8-N03 | 3/8″ | 3/8 NPT |
DPLH 3/8-N04 | 3/8″ | 1/2 NPT |
DPLH 1/2-N01 | 1/2″ | 1/8 NPT |
DPLH 1/2-N02 | 1/2″ | 1/4 NPT |
DPLH 1/2-N03 | 1/2″ | 3/8 NPT |
DPLH 1/2-N04 | 1/2″ | 1/2 NPT |
