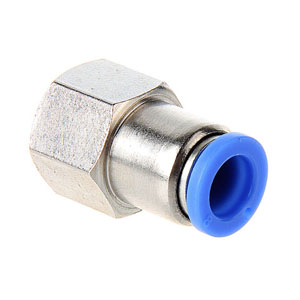

Features
Nickle-Plated brass body and PBT body.
Stainless steel tube gripping claws, collars and release sleeves(collets) offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing.
Oval and round shape of release sleeve are available.
Three colors on the release sleeve, blue, black and gray.
Specifications
| Fluid Admitted | Air, Vacuum, Water (no freezing) |
| Working Pressure | 0—1.0MPa | 0—150psi |
| Proof Pressure | 3.0Mpa | 435psi |
| Negative Pressure | -100Kpa | -29.5 In Hg |
| Working Temperature | 0—60°C | 32～140°F |
| Applicable Tube | PU / PA / PE / PVC |
| Metric Tube ØD | ||||||||||
| 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm | 14mm | 15mm | 16mm |
| Inch Tube ØD | ||||||
| 1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ |
| Thread Standard and Type | |||||||||||
| R, PT, BSPT — 55° Taper Pipe Thread | Metric Thread | ||||||||||
| R1/8 | R1/4 | R3/8 | R1/2 | M5x0.8 | M6x1 | M8x1 | M10x1 | M12x1.25 | M14x1.5 | M16x1.5 | M20x1.5 |
| Tube(Metric)-Thread(R) | Tube(inch)-Thread(R) | Tube(inch)-Thread(NPT) | |||
| PCF4-01 | PCF10-01 | PCF1/8-01 | PCF5/16-03 | PCF1/8-N01 | PCF1/4-N03 |
| PCF4-02 | PCF10-02 | PCF1/8-02 | PCF5/16-04 | PCF1/8-N02 | PCF5/16-N01 |
| PCF4-03 | PCF10-03 | PCF5/32-01 | PCF3/8-01 | PCF5/32-U10 | PCF5/16-N02 |
| PCF6-M5 | PCF10-04 | PCF5/32-02 | PCF3/8-02 | PCF5/32-N01 | PCF5/16-N03 |
| PCF6-M6 | PCF12-01 | PCF3/16-01 | PCF3/8-03 | PCF5/32-N02 | PCF3/8-N01 |
| PCF6-01 | PCF12-02 | PCF3/16-02 | PCF3/8-04 | PCF3/16-U10 | PCF3/8-N02 |
| PCF6-02 | PCF12-03 | PCF3/16-03 | PCF1/2-02 | PCF3/16-N01 | PCF3/8-N03 |
| PCF6-03 | PCF12-04 | PCF1/4-01 | PCF1/2-03 | PCF3/16-N02 | PCF3/8-N04 |
| PCF8-01 | PCF16-03 | PCF1/4-02 | PCF1/2-04 | PCF3/16-N03 | PCF1/2-N02 |
| PCF8-02 | PCF16-04 | PCF1/4-03 | PCF1/4-U10 | PCF1/2-N03 | |
| PCF8-03 | PCF5/16-01 | PCF1/4-N01 | PCF1/2-N04 | ||
| PCF8-04 | PCF5/16-02 | PCF1/4-N02 | |||
