Feature

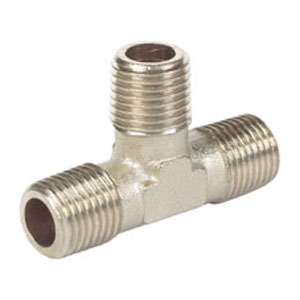

Brass Connector are made of brass bar or forging brass, consist of a wide variety of components.
Suit for low and medium pressure pipe line connections. The fluid can be water, refrigeration, instrumentation, hydraulic systems, grease, fuels, LP and natural gas.
Specification
| Fluid Admitted | Water, Refrigeration, Instrumentation, Hydraulic Systems, Grease, Fuels, LP, Natural Gas |
| Max Working Pressure | 8MPa | 1200psi |
| Working Temperature | -53°C—121°C | -65°F—250°F |
| Body | Natural Brass & Nickel Plated Brass |
| Applicable Pipe | Brass, Bronze, Copper, Steel, Aluminum, Iron Pipe |
| Thread Standard and Type | |||||
PT, R, BSPT – 55° Taper Pipe Thread | |||||
R1/8 | R1/4 | R3/8 | R1/2 | R1/2 | R1/2 |
BSPP, G – 55° Parallel Pipe Thread | ||||||||
G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 | |||
UNF | NPT – 60°American Standard Taper Pipe Thread | ||||||
10-32 UNF | 1/8 NPT | 1/4 NPT | 3/8 NPT | 1/2 NPT | 3/4 NPT | 1 NPT | |
Metric Thread | ||||||||||
M5 x 0.8 | M6 x 1 | M8 x 1 | M8 x 1.25 | M10 x 1 | M10 x 1.25 | M12 x 1.25 | M12 x 1.5 | M14 x 1.5 | M16 x 1.5 | M20 x 1.5 |
Model No. | Thread (PT, PP, NPT) |
BMM 01 | R1/8 |
BMM 02 | R1/4 |
BMM 03 | R3/8 |
BMM 04 | R1/2 |
BMM 06 | R3/4 |
BMM 08 | R1 |
