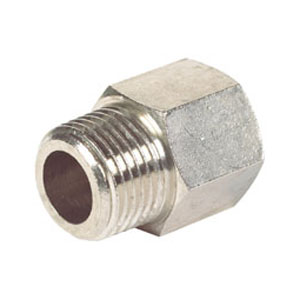

CMF Male to Female Expander Fitting

Feature

Brass Connector are made of brass bar or forging brass, consist of a wide variety of components.

Suit for low and medium pressure pipe line connections. The fluid can be water, refrigeration, instrumentation, hydraulic systems, grease, fuels, LP and natural gas.

Specification

 Fluid AdmittedWater, Refrigeration, Instrumentation, Hydraulic Systems, Grease, Fuels, LP, Natural Gas
 Max Working Pressure8MPa | 1200psi
 Working  Temperature-53°C—121°C | -65°F—250°F
 BodyNatural Brass & Nickel Plated Brass
 Applicable PipeBrass, Bronze, Copper, Steel, Aluminum, Iron Pipe
Thread Standard and Type

PT, R, BSPT – 55° Taper Pipe Thread

R1/8

R1/4

R3/8R1/2R1/2R1/2

BSPP, G – 55° Parallel Pipe Thread

G1/8

G1/4

G3/8

G1/2

G3/4

G1




UNF

NPT – 60°American Standard Taper Pipe Thread



10-32 UNF

1/8 NPT

1/4 NPT

3/8 NPT

1/2 NPT

3/4 NPT

1 NPT


Metric Thread

M5 x 0.8

M6 x 1

M8 x 1

M8 x 1.25

M10 x 1

M10 x 1.25

M12 x 1.25

M12 x 1.5

M14 x 1.5

M16 x 1.5

M20 x 1.5

Model No.

Thread (PT, PP, NPT)

CMF 01

R1/8

CMF 02

R1/4

CMF 03

R3/8

CMF 04

R1/2

CMF 06

R3/4

CMF 08

R1
