Feature

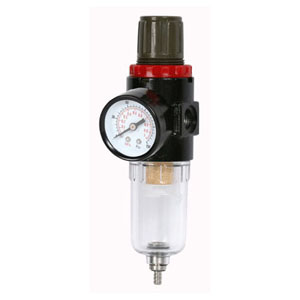

AB series filter and regulator is equivalent AIRTAC series FRL..
Filter out the water molecule and dust, lubricate the oil and regulate the compressed air.
Specification
Model | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
Medium | Air | ||||
Port size(G) | 1/8 | 1/4 | 1/4 | 3/8 | 1/2 |
Port size for pressure gauge | G1/8 | G1/4 | |||
Drain capacity | 15cm3 | 60cm3 | |||
Max.burst pressure | 15kgf/cm2 | ||||
Max.operating pressure | 9.9kgf/cm2 | ||||
Regulating range | 0.5~8.5kgf/cm2 | ||||
Ambient and media temperature | 5~60 celsius degree | ||||
Filtration | 40um | ||||
Body material | Aluminum Die-casting | ||||
Bowl material | Polycarbonate | ||||
Cup cover | - | steel | |||
Weight | 0.26kgs | 0.4kgs | |||
