Feature

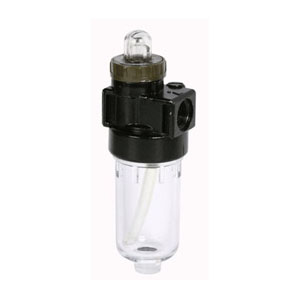

AB series lubricator is equivalent AIRTAC series FRL..
Filter out the water molecule and dust, lubricate the oil and regulate the compressed air.
Specification
Model | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
Medium | Air | ||||
Port size(G) | 1/8 | 1/4 | 1/4 | 3/8 | 1/2 |
Oil capacity | 25cm3 | 90cm3 | |||
Max.burst pressure | 15kgf/cm2 | ||||
Max.operating pressure | 9.9kgf/cm2 | ||||
Regulating range | 0.5~8.5kgf/cm2 | ||||
Ambient and media temperature | 5~60 celsius degree | ||||
Recommended oil | Turbin oil ISO VG32 | ||||
Body material | Aluminum Die-casting | ||||
Bowl material | Polycarbonate | ||||
Cup cover | - | steel | |||
Weight | 0.17kgs | 0.25kgs | |||
