Feature

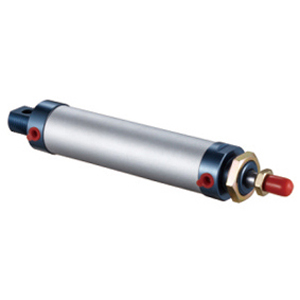

MA series cylinder are ISO6432 standard.
Compact structure can effectively save installation space.
Riveted structure is adopted to connect the cylinder body and back cover, piston and piston rod make it compact and reliable.
Mounting accessories with various specifications are available.
Specification
Bore (mm) | 16 | 20 | 25 | 32 | 40 |
Motion pattern | Double acting or Single acting | ||||
Working medium | Air | ||||
Mountings | Basic FA,LB, SDB | ||||
Working pressure | 1~9.0 Kgf/cm2 | ||||
Proof pressure | 13.5 Kgf/cm2 | ||||
Operating temperature range | 0-70 Celsius degree | ||||
Operating speed range | 50~800 mm/s | ||||
Cushion | Gasket cushioning | ||||
Port size | M5X0.8 | G1/8 | |||
Bore (mm) | Standard Stroke | Max stroke | Allowable stroke | |||||||||||||||
16 | 25 | 50 | 75 | 80 | 100 | 125 | 150 | 160 | 175 | 200 | 300 | 500 | ||||||
20 | 25 | 50 | 75 | 80 | 100 | 125 | 150 | 160 | 175 | 200 | 250 | 300 | 500 | 650 | ||||
25 | 25 | 50 | 75 | 80 | 100 | 125 | 150 | 160 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 650 |
32 | 25 | 50 | 75 | 80 | 100 | 125 | 150 | 160 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 650 |
40 | 25 | 50 | 75 | 80 | 100 | 125 | 150 | 160 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 650 |
