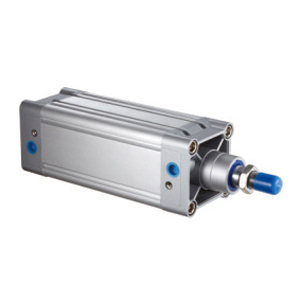

DNC Series Pneumatic Cylinder

INQUIRY

Feature

Front, real cover and piston are made of aluminum alloy die - they are made by high precision CNC. Barrel is made of hard anodised aluminum. Piston rod is made of chromed carbon steel. Unique cushion technique makes smooth action, long time service and no need lubrication maintenance. Admit to add sensor to control the stroke easily

Confirm ISO 15552 Standard.

Specification

Bore (mm)	32	40	50	63	80	100	125	160	200	250	320
Motion pattern	Double acting
Working medium	Air
Mountings	Basic FA, FB, CA, CB, LB, TC, TC-M
Working pressure	1~9.0 Kgf/cm²
Proof pressure	13.5 Kgf/cm²
Operating temperature range	0-70 Celsius degree
Operating speed range	50~800 mm/s
Cushion	Adjustable cushioning
Adjustable cushioning stroke	20mm				26mm			45mm	52mm		66mm
Port size	G 1/8	G 1/4		G 3/8		G 1/2		G3/4	G1

Bore (mm)	Standard Stroke																					Max stroke	Allowable stroke
32	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500						1000	2000
40	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800			1200	2000
50	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1200	2000
63	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
80	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
100	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
125	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
160	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
200	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
250	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
320	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
