Feature

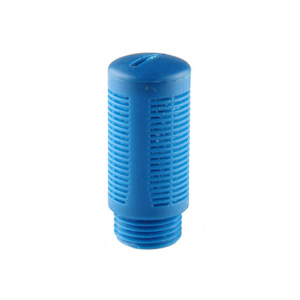

Easy to install and maintain, particularly suitable for where space is limited.
Brass,Stainless steel,Aluminum alloy,Plastic body,sintered brass powder mesh and stainless steel wire mesh.
Used to diffuse air and muffle noise from the exhaust ports of air valves, air cylinders and air tools to an acceptable level within OSHA noise requirements.
Specification
| Fluid Admitted | Compressed Air |
| Working Pressure | 0—1MPa | 150psi |
| Working Temperature | -10°C—80°C | 14°F—176°F |
| Body(noise absorbing material) | Sintered Bronze, Sintered Stainless Steel, Polyethylene |
| Thread Standard and Type | ||||||||
| PT, R, BSPT – 55° Taper Pipe Thread | ||||||||
R1/8 | R1/4 | R1/4 | R1/2 | R3/4 | R1 | R1-1/4 | R1-1/2 | R2 |
BSPP, G – 55° Parallel Pipe Thread | ||||||||
G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 | G1-1/4 | G1-1/2 | G2 |
UNF | NPT – 60°American Standard Taper Pipe Thread | ||||||||
10-32 UNF | 1/8 NPT | 1/4 NPT | 3/8 NPT | 1/2 NPT | 3/4 NPT | 1 NPT | 1-1/4 NPT | 1-1/2 NPT | 2 NPT |
Metric Thread | ||||||||||
M5 x 0.8 | M6 x 1 | M8 x 1 | M8 x 1.25 | M10 x 1 | M10 x 1.25 | M12 x 1.25 | M12 x 1.5 | M14 x 1.5 | M16 x 1.5 | M20 x 1.5 |
Model No. | Thread(R,G,NPT) |
PSL 01 | 1/8 |
PSL 02 | 1/4 |
PSL 03 | 3/8 |
PSL 04 | 1/2 |
PSL 06 | 3/4 |
PSL 08 | 1 |
PSL 10 | 1-1/4 |
PSL 12 | 1-1/2 |
PSL 16 | 2 |
