Feature

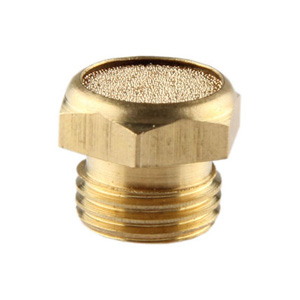

Easy to install and maintain, particularly suitable for where space is limited.
Brass,Stainless steel,Aluminum alloy,Plastic body,sintered brass powder mesh and stainless steel wire mesh.
Used to diffuse air and muffle noise from the exhaust ports of air valves, air cylinders and air tools to an acceptable level within OSHA noise requirements.
Specification
| Fluid Admitted | Compressed Air |
| Working Pressure | 0—1MPa | 150psi |
| Working Temperature | -10°C—80°C | 14°F—176°F |
| Body(noise absorbing material) | Sintered Bronze, Sintered Stainless Steel, Polyethylene |
| Thread Standard and Type | ||||||||
| PT, R, BSPT – 55° Taper Pipe Thread | ||||||||
R1/8 | R1/4 | R1/4 | R1/2 | R3/4 | R1 | R1-1/4 | R1-1/2 | R2 |
BSPP, G – 55° Parallel Pipe Thread | ||||||||
G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 | G1-1/4 | G1-1/2 | G2 |
UNF | NPT – 60°American Standard Taper Pipe Thread | ||||||||
10-32 UNF | 1/8 NPT | 1/4 NPT | 3/8 NPT | 1/2 NPT | 3/4 NPT | 1 NPT | 1-1/4 NPT | 1-1/2 NPT | 2 NPT |
Metric Thread | ||||||||||
M5 x 0.8 | M6 x 1 | M8 x 1 | M8 x 1.25 | M10 x 1 | M10 x 1.25 | M12 x 1.25 | M12 x 1.5 | M14 x 1.5 | M16 x 1.5 | M20 x 1.5 |
Model No. | Thread(R,G,NPT) |
BSLM 01 | 1/8 |
BSLM 02 | 1/4 |
BSLM 03 | 3/8 |
BSLM 04 | 1/2 |
BSLM 06 | 3/4 |
BSLM 08 | 1 |
BSLM 10 | 1-1/4 |
BSLM 12 | 1-1/2 |
BSLM 16 | 2 |
