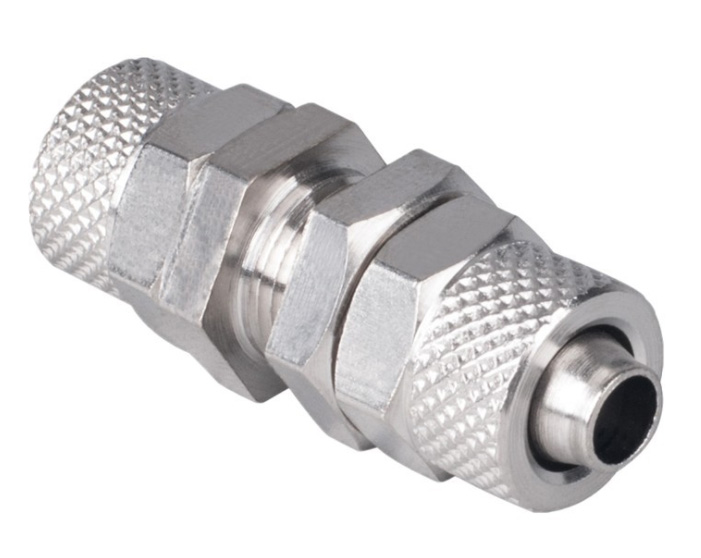

Feature
Reliable way to connect the tube.
Working with high pressure.
Suitable for different tube material.
Specification
Fluid Admitted | Air, Water, Steam |
Max Working Pressure | 2MPa | 290psi |
Working Temperature | -20°C—120°C | -4°F—248°F |
Body | Nickel Plated Brass |
Applicable Pipe | PU/PA/FEP/PFA |
| Metric Tube ØD | ||||
| 4mm | 6mm | 8mm | 10mm | 12mm |
| Thread Standard and Type | |||||||
| R, PT, BSPT — 55° Taper Pipe Thread | BSPP, G-55° Parallel Pipe Thread | ||||||
| R1/8 | R1/4 | R3/8 | R1/2 | G1/8 | G1/4 | G3/8 | G1/2 |
Part No. | Tube ΦD |
RPM 4/2 | 4/2mm |
RPM 6/4 | 6/4mm |
RPM 8/6 | 8/6mm |
RPM 10/8 | 10/8mm |
RPM 12/10 | 12/10mm |
