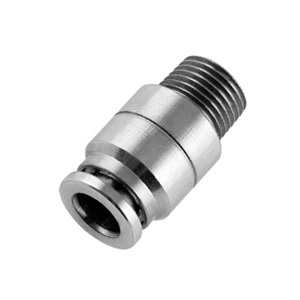

Features
Body is made of copper.
Working with high pressure and high temperature.
Suitable for Nylon tube
Specifications
| Fluid Admitted | Air, Water, Steam |
| Max Working Pressure | 2MPa | 290psi |
| Working Temperature | -20°C—120°C | -4°F—248°F |
| Body | Nickel Plated Brass |
| Applicable Pipe | PU/PA/FEP/PFA |
| O-ring | FKM(Viton) |
| Metric Tube ØD | ||||||||||
| 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm | 14mm | 15mm | 16mm |
| Inch Tube ØD | ||||||
| 1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ |
| Thread Standard and Type | |||||||||||
| R, PT, BSPT — 55° Taper Pipe Thread | Metric Thread | ||||||||||
| R1/8 | R1/4 | R3/8 | R1/2 | M5x0.8 | M6x1 | M8x1 | M10x1 | M12x1.25 | M14x1.5 | M16x1.5 | M20x1.5 |
UNF | NPT – 60°American Standard Taper Pipe Thread | BSPP, G – 55° Parallel Pipe Thread | ||||||
10-32 UNF | 1/8 NPT | 1/4 NPT | 3/8 NPT | 1/2 NPT | G1/8 | G1/4 | G3/8 | G1/2 |
Tube(Metric)-Thread(R) | Tube(inch)-Thread(R) | Tube(inch)-Thread(NPT) | |||
MPOC4-M5 | MPOC8-03 | MPOC1/8-01 | MPOC5/16-03 | MPOC1/8-U10 | MPOC1/4-N02 |
MPOC4-M6 | MPOC8-04 | MPOC1/8-02 | MPOC5/16-04 | MPOC1/8-N01 | MPOC1/4-N03 |
MPOC4-01 | MPOC10-01 | MPOC5/32-01 | MPOC3/8-01 | MPOC1/8-N02 | MPOC5/16-N01 |
MPOC4-02 | MPOC10-02 | MPOC5/32-02 | MPOC3/8-02 | MPOC5/32-U10 | MPOC5/16-N02 |
MPOC4-03 | MPOC10-03 | MPOC3/16-01 | MPOC3/8-03 | MPOC5/32-N01 | MPOC5/16-N03 |
MPOC6-M5 | MPOC10-04 | MPOC3/16-02 | MPOC3/8-04 | MPOC5/32-N02 | MPOC3/8-N01 |
MPOC6-M6 | MPOC12-01 | MPOC3/16-03 | MPOC1/2-02 | MPOC3/16-U10 | MPOC3/8-N02 |
MPOC6-01 | MPOC12-02 | MPOC1/4-01 | MPOC1/2-03 | MPOC3/16-N01 | MPOC3/8-N03 |
MPOC6-02 | MPOC12-03 | MPOC1/4-02 | MPOC1/2-04 | MPOC3/16-N02 | MPOC3/8-N04 |
MPOC6-03 | MPOC12-04 | MPOC1/4-03 | MPOC3/16-N03 | MPOC1/2-N02 | |
MPOC8-01 | MPOC16-03 | MPOC5/16-01 | MPOC1/4-U10 | MPOC1/2-N03 | |
MPOC8-02 | MPOC16-04 | MPOC5/16-02 | MPOC1/4-N01 | MPOC1/2-N04 | |
