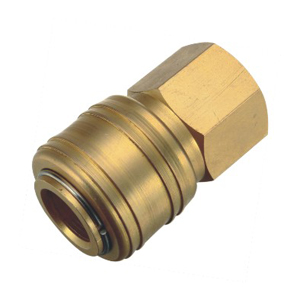

NITTO Quick Coupling
It allow easy changing of tools or hose connection and disconnection from your facility’s air supply line without shutting down or depressurizing the whole system.
Easy way to boost the efficiency of compressed air system.
Specification
| Fluid Admitted | Air, Oil, Water (no freezing) |
| Working Pressure | 0—1.0MPa | 0—150psi |
| Negative Pressure | -100Kpa | -29.5 In Hg |
| Working Temperature | 0—60°C | 32～140°F |
| Applicable Tube | PU(Polyurethane) / PA(Nylon) |
| Body | Chrome Plated Steel |
NPT Pipe Thread | |||
Code | 20 | 30 | 40 |
Thread | NPT1/4 | NPT3/8 | NPT1/2 |
Model | Thread |
SF2-20 | R1/4 |
SF2-30 | R3/8 |
SF2-40 | R1/2 |
