Feature

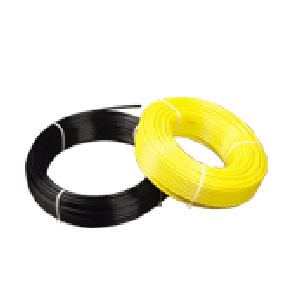

Nylon Tube include PA6, PA11 and PA12 three types.
Work with high temperature.
Available in metric and imperial sizes. Multiple color for your selection.
Specification
| Material | Polyamide (PA6, PA11, PA12) |
| Fluid | Air, Water |
| Burst Pressure | 6.0Mpa | 870psi |
| Operation Pressure | >2Mpa | >300psi |
| Working Temperature | -20°C—120°C |
Metric Tube ØD | ||||||||||
4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm | 14mm | 15mm | 16mm |
Inch Tube ØD | ||||||||||
1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ | ||||
STRAIGHT
Model No. | Tubing Outer ΦD | Tubing Inner ΦD | Standard Length* |
PAC 3 X 2 | 3mm | 2mm | 200m |
PAC 4 X 2 | 4mm | 2mm | 200m |
PAC 4 X 2.5 | 4mm | 2.5mm | 200m |
PAC 6 X 4 | 6mm | 4mm | 100m |
PAC 8 X 5 | 8mm | 5mm | 100m |
PAC 8 X 6 | 8mm | 6mm | 100m |
PAC 10 X 6.5 | 10mm | 6.5mm | 100m |
PAC 10 X 8 | 10mm | 8mm | 100m |
PAC 12 X 8 | 12mm | 8mm | 100m |
PAC 12 X 9 | 12mm | 9mm | 100m |
PA 16 X 12 | 16mm | 12mm | 100m |
Model No. | Tubing Outer ΦD | Tubing Inner ΦD | Standard Length* |
PAC 1/8 | 1/8″ | 0.079″ | 200m |
PAC 5/32 | 5/32″ | 0.098″ | 200m |
PAC 1/4 | 1/4″ | 0.167″ | 200m |
PAC 5/16 | 5/16″ | 0.197″ | 100m |
PAC 3/8 | 3/8″ | 1/4″ | 100m |
PAC 1/2 | 1/2″ | 3/8″ | 100m |
PAC 1/2 | 1/2″ | 0.333″ | 100m |
COIL
| Ref No. | Ref No. ofElectrical Coils | No. Turns | Mandrel(mm) | Working Length (m) |
| QS-15 | QS-15 | 15 | 110 | 2.50 |
| QS-18 | QS-18 | 18 | 90 | 2.00 |
| 110 | 3.00 | |||
| QS-20 | QS-20 | 20 | 90 | 2.50 |
| 110 | 3.25 | |||
| QS-22 | QS-22 | 22 | 90 | 2.50 |
| 110 | 3.50 | |||
| QS-24 | QS-24 | 24 | 90 | 3.00 |
| 110 | 3.75 | |||
| QS-26 | QS-26 | 26 | 90 | 3.50 |
| 110 | 4.00 | |||
| QS-28 | QS-28 | 28 | 110 | 4.10 |
| QS-30 | QS-30 | 30 | 11O | 4.30 |
