Feature

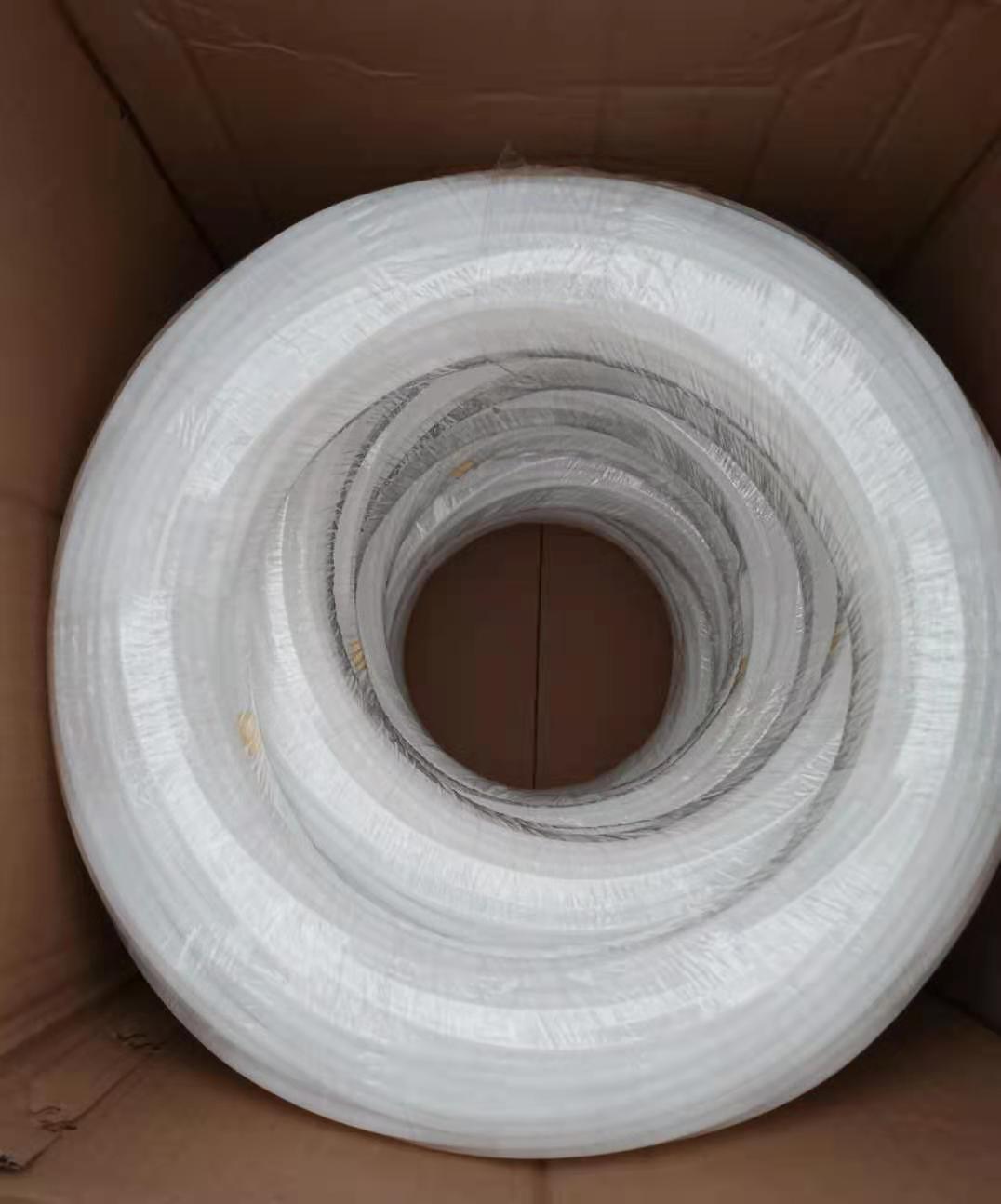

Teflon material.
Work with high temperature.
Available in metric and imperial sizes. Multiple color for your selection.
Specification
| Material | Teflon |
| Fluid | Air, Water, Steam |
| Burst Pressure | 6.0Mpa | 870psi |
| Operation Pressure | >2Mpa | >300psi |
| Working Temperature | -40°C—220°C |
Metric Tube ØD | ||||||||||
4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm | 14mm | 15mm | 16mm |
Inch Tube ØD | ||||||||||
1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ | ||||
STRAIGHT
Model No. | Tubing Outer ΦD | Tubing Inner ΦD | Standard Length* |
TF 3 X 2 | 3mm | 2mm | 100m |
TF 4 X 2 | 4mm | 2mm | 100m |
TF 4 X 2.5 | 4mm | 2.5mm | 100m |
TF 6 X 4 | 6mm | 4mm | 100m |
TF 8 X 5 | 8mm | 5mm | 100m |
TF 8 X 6 | 8mm | 6mm | 100m |
TF 10 X 6.5 | 10mm | 6.5mm | 100m |
TF 10 X 8 | 10mm | 8mm | 100m |
TF 12 X 8 | 12mm | 8mm | 100m |
TF 12 X 9 | 12mm | 9mm | 100m |
TF 16 X 12 | 16mm | 12mm | 100m |
