Feature

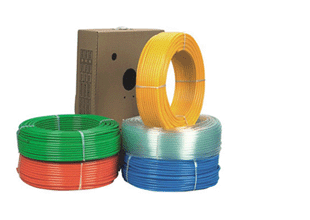

PU tubing include Ether and Ester two types.
Good performance of resistance against oil, high pressure, bad whether.
Available in neutral, black,blue, yellow, green, and red color.
Metric size and Inch size are available.
Specification
| Material | Ether or Ester |
| Fluid | Air, Water |
| Burst Pressure | 3.0MPUB | 435psi |
| Operation Pressure | 0-1.0MPUB | 0-150psi |
| Working Temperature | -20°C—60°C |
Metric Tube ØD | ||||||||||
4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm | 14mm | 15mm | 16mm |
Inch Tube ØD | ||||||||||
1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ | ||||
STRAIGHT
Model No. | Tubing Outer ΦD | Tubing Inner ΦD | Standard Length* |
PU 3 X 2 | 3mm | 2mm | 200m |
PU 4 X 2 | 4mm | 2mm | 200m |
PU 4 X 2.5 | 4mm | 2.5mm | 200m |
PU 6 X 4 | 6mm | 4mm | 100m |
PU 8 X 5 | 8mm | 5mm | 100m |
PU 8 X 6 | 8mm | 6mm | 100m |
PU 10 X 6.5 | 10mm | 6.5mm | 100m |
PU 10 X 8 | 10mm | 8mm | 100m |
PU 12 X 8 | 12mm | 8mm | 100m |
PU 12 X 9 | 12mm | 9mm | 100m |
PU 16 X 12 | 16mm | 12mm | 100m |
Model No. | Tubing Outer ΦD | Tubing Inner ΦD | Standard Length* |
PU 1/8 | 1/8″ | 0.079″ | 200m |
PU 5/32 | 5/32″ | 0.098″ | 200m |
PU 1/4 | 1/4″ | 0.167″ | 200m |
PU 5/16 | 5/16″ | 0.197″ | 100m |
PU 3/8 | 3/8″ | 1/4″ | 100m |
PU 1/2 | 1/2″ | 3/8″ | 100m |
PU 1/2 | 1/2″ | 0.333″ | 100m |
