  • Anti-Coorsive Solenoid Valve

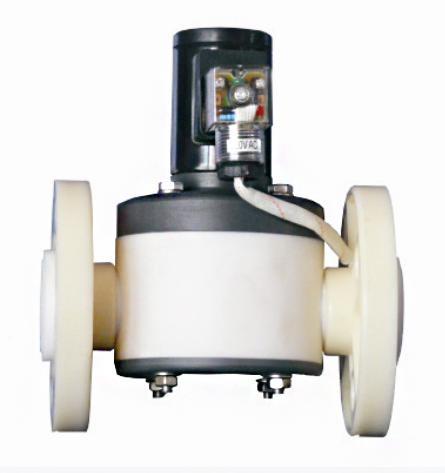

Anti-Coorsive Solenoid Valve

Product Usage Range

High pressure solenoid valves are widely used in military、aerospace、marine industry、petrochemical、power、chemical、light industry、machinery、scientific research、industrial furnaces、drying equipment、water supply and drainage、fire、food medical、cleaning equipment、 fountains、water plants Media automation control field.



Product Features:

1.Patented technology, unique design;

2.Spool for the pilot piston structure, stable performance;

3.Dynamic sealing performance is high, the switch is fast;

4.Autocratic coil, not easy to burn, a long time to stop the action to restart, the same action sensitive;

5.Coil power consumption is small, long life.

Specification:

Diameter range

DN0.5—DN300

Pressure range

0.1-300MPA

Applicable media

water、gas、oil、corrosive fluid etc

Control method

normally open、normally closed、self-sustaining

Body material

stainless steel

Voltage

DC12-220V  AC24-380V

Medium temperature

(-200、-50) ~ (+120、+400)℃

Connection method

flange、welding、internal thread(external thread and special interface can be customized or adapter)

Medium viscosity

less than 50 C St(more than required custom)

Protective performance

dust-proof,waterproof,explosion-proof.According to working conditions

Wiring method

terminal type; lead type; plug type
