Feature

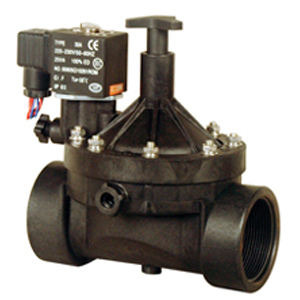

PA material solenoid valve.
Normally open and normally closed are available.
2way working type.
Different voltages are available.
Specification
| Model | 2WP-40 | 2WP-50 |
| Working type | Pilot operated | |
| Pattern | Normally closed | |
| Working pressure | 0.01MPa-0.8MPa | |
| Connection thread | G1-1/2 | G2 |
| Orifice | 40mm | 50mm |
| CV | 28 | 48 |
| Medium | air, water, oil | |
| Valve body | PA | |
| Fluid temperature | 0-60Degree | |
| Ambient temperature | 0-45 Degree | |
| voltage | AC220V, AC110V, 24VDC, 12VDC | |
