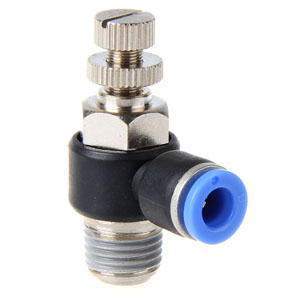

JSC Throttle Valve

INQUIRY

Features

Nickle-Plated brass body and PBT body.

Stainless steel tube gripping claws, collars and release sleeves(collets) offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing.

Oval and round shape of release sleeve are available.

Three colors on the release sleeve, blue, black and gray.

Specifications

Fluid Admitted	Air, Vacuum, Water (no freezing)
Working Pressure	0—1.0MPa \| 0—150psi
Proof Pressure	3.0Mpa \| 435psi
Negative Pressure	-100Kpa \| -29.5 In Hg
Working Temperature	0—60°C \| 32～140°F
Applicable Tube	PU / PA / PE / PVC

20170603235458

Metric Tube ØD
4mm	5mm	6mm	7mm	8mm	9mm	10mm	12mm	14mm	15mm	16mm

Inch Tube ØD
1/8″	5/32″	3/16″	1/4″	5/16″	3/8″	1/2″

Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe Thread				Metric Thread
R1/8	R1/4	R3/8	R1/2	M5x0.8	M6x1	M8x1	M10x1	M12x1.25	M14x1.5	M16x1.5	M20x1.5

Tube(Metric)-Thread(R)		Tube(inch)-Thread(R)		Tube(inch)-Thread(NPT)
JSC4-M5B	JSC8-03B	JSC1/8-01B	JSC5/16-03B	JSC1/8-U10B	JSC1/4-N02B
JSC4-M6B	JSC8-04B	JSC1/8-02B	JSC5/16-04B	JSC1/8-N01B	JSC1/4-N03B
JSC4-01B	JSC10B-01B	JSC5/32-01B	JSC3/8-01B	JSC1/8-N02B	JSC5/16-N01B
JSC4-02B	JSC10B-02B	JSC5/32-02B	JSC3/8-02B	JSC5/32-U10B	JSC5/16-N02B
JSC4-03B	JSC10B-03B	JSC3/16-01B	JSC3/8-03B	JSC5/32-N01B	JSC5/16-N03B
JSC6-M5B	JSC10B-04B	JSC3/16-02B	JSC3/8-04B	JSC5/32-N02B	JSC3/8-N01B
JSC6-M6B	JSC12-01B	JSC3/16-03B	JSC1/2-02B	JSC3/16-U10B	JSC3/8-N02B
JSC6-01B	JSC12-02B	JSC1/4-01B	JSC1/2-03B	JSC3/16-N01B	JSC3/8-N03B
JSC6-02B	JSC12-03B	JSC1/4-02B	JSC1/2-04B	JSC3/16-N02B	JSC3/8-N04B
JSC6-03B	JSC12-04B	JSC1/4-03B		JSC3/16-N03B	JSC1/2-N02B
JSC8-01B	JSC16-03B	JSC5/16-01B		JSC1/4-U10B	JSC1/2-N03B
JSC8-02B	JSC16-04B	JSC5/16-02B		JSC1/4-N01B	JSC1/2-N04B
