  • RPU Union Straight Rapid Fitting

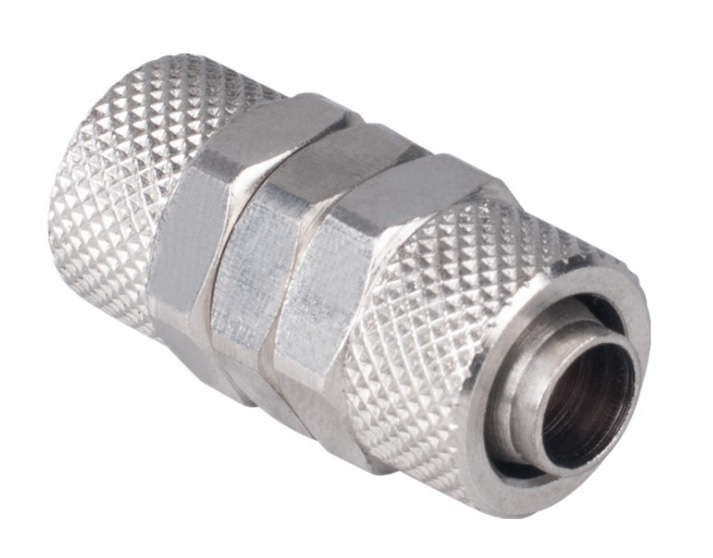

RPU Union Straight Rapid Fitting

Feature

Reliable way to connect the tube.

Working with high pressure.

Suitable for different tube material.

Specification

Fluid Admitted

Air, Water, Steam

Max Working Pressure

2MPa | 290psi

Working  Temperature

-20°C—120°C | -4°F—248°F

Body

Nickel Plated Brass

Applicable Pipe

PU/PA/FEP/PFA

rapid-fittings

Metric Tube ØD
4mm6mm8mm10mm12mm
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe ThreadBSPP, G-55° Parallel Pipe Thread
R1/8R1/4R3/8

R1/2

G1/8

G1/4

G3/8

G1/2

Part No.

Tube ΦD

RPU 4/2

4/2mm

RPU 6/4

6/4mm

RPU 8/6

8/6mm

RPU 10/8

10/8mm

RPU 12/10

12/10mm
