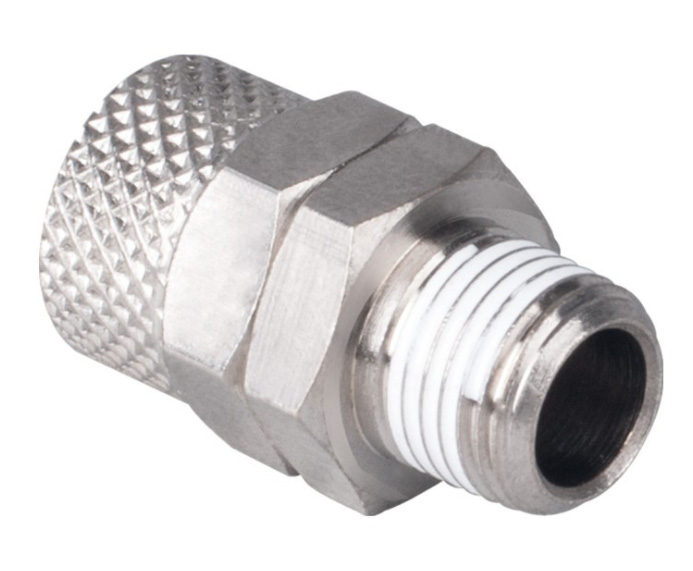

RPC Male Straight Rapid Fitting

Feature

Reliable way to connect the tube.

Working with high pressure.

Suitable for different tube material.

Specification

Fluid Admitted

Air, Water, Steam

Max Working Pressure

2MPa | 290psi

Working  Temperature

-20°C—120°C | -4°F—248°F

Body

Nickel Plated Brass

Applicable Pipe

PU/PA/FEP/PFA

rapid-fittings

Metric Tube ØD
4mm6mm8mm10mm12mm
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe ThreadBSPP, G-55° Parallel Pipe Thread
R1/8R1/4R3/8

R1/2

G1/8

G1/4

G3/8

G1/2

Model No.

Tube ΦD

Thread (PT, R, BSPT)

RPC 4/2-M5

4/2mm

M5

RPC 4/2-M6

4/2mm

M6

RPC 4/2-01

4/2mm

R3/8

RPC 6/4-M5

6/4mm

M5

RPC 6/4-M6

6/4mm

M6

RPC 6/4-01

6/4mm

R1/8

RPC 6/4-02

6/4mm

R1/4

RPC 6/4-03

6/4mm

R3/8

RPC 8/6-01

8/6mm

R1/8

RPC 8/6-02

8/6mm

R1/4

RPC 8/6-03

8/6mm

R3/8

RPC 10/8-01

10/8mm

R1/8

RPC 10/8-02

10/8mm

R1/4

RPC 10/8-03

10/8mm

R3/8

RPC 10/8-04

10/8mm

R1/2

RPC 12/10-02

12/10mm

R1/4

RPC 12/10-03

12/10mm

R3/8

RPC 12/10-04

12/10mm

R1/2
