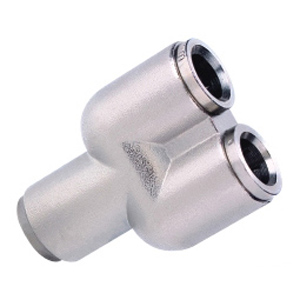

Features
Body is made of copper.
Working with high pressure and high temperature.
Suitable for Nylon tube
Specifications
| Fluid Admitted | Air, Water, Steam |
| Max Working Pressure | 2MPa | 290psi |
| Working Temperature | -20°C—120°C | -4°F—248°F |
| Body | Nickel Plated Brass |
| Applicable Pipe | PU/PA/FEP/PFA |
| O-ring | FKM(Viton) |
| Metric Tube ØD | ||||||||||
| 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm | 14mm | 15mm | 16mm |
| Inch Tube ØD | ||||||
| 1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ |
| Thread Standard and Type | |||||||||||
| R, PT, BSPT — 55° Taper Pipe Thread | Metric Thread | ||||||||||
| R1/8 | R1/4 | R3/8 | R1/2 | M5x0.8 | M6x1 | M8x1 | M10x1 | M12x1.25 | M14x1.5 | M16x1.5 | M20x1.5 |
UNF | NPT – 60°American Standard Taper Pipe Thread | BSPP, G – 55° Parallel Pipe Thread | ||||||
10-32 UNF | 1/8 NPT | 1/4 NPT | 3/8 NPT | 1/2 NPT | G1/8 | G1/4 | G3/8 | G1/2 |
Tube(Metric) | Tube(inch) |
MPY 4 | MPY 5/32 |
MPY 6 | MPY 3/16 |
MPY 8 | MPY 1/4 |
MPY 10 | MPY 5/16 |
MPY 12 | MPY 3/8 |
MPY 1/2 |
Fluid Admitted | Air, Water, Steam |
Max Working Pressure | 2MPa | 290psi |
Working Temperature | -20°C—120°C | -4°F—248°F |
Body | Nickel Plated Brass |
Applicable Pipe | PU/PA/FEP/PFA |
