Specifications
| Wroking type: | Two-port two-position | |||||
| Principium: | directly acting type | |||||
| Control mode: | normally close | |||||
| Valve body: | Plastic POM, 1/4″tube O.D. | |||||
| Medium temperature: | 0~100°C | |||||
| Working pressure: | 0~8bar | |||||
| Max pressure: | 10bar | |||||
| Voltage: | AC220V AC110V DC12V DC24V | |||||
| Medium: | air ,water, hot water , oil ect. | |||||
| Application: | flow normally air water control system ,water dispenser | |||||

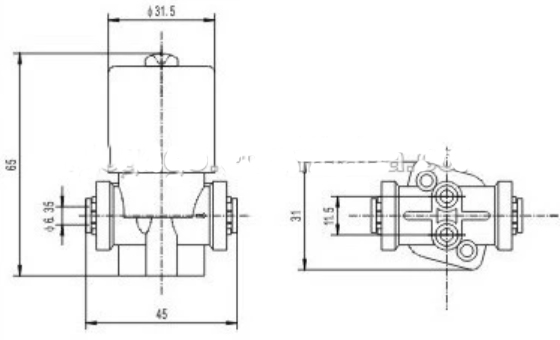

Dimensions
