Specifications
working voltage: DC3.6V
Coil resistance: 12 ohms
work form: positive pulse open valve, negative pulse off valve
pulse max-width:100%;a: 30ms
working pressure: 0.02-1.0MPa
pipe size: 1/4″
medium temperature: 1-80 ℃
life: ≥ 30 million times
Insulation performance: live and non-live conductor can withstand AC600V 1min without breakdown or produce arcing phenomenon

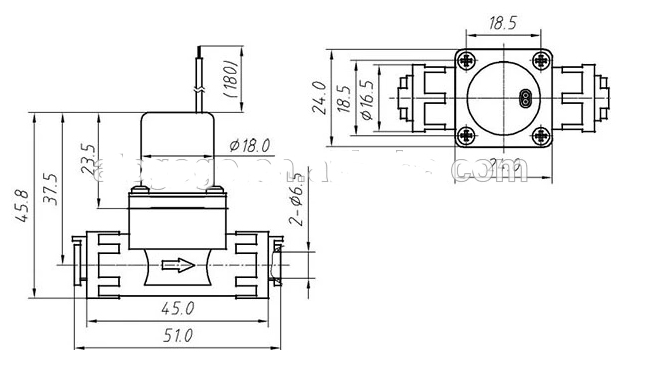

Dimensions
