  • Plastic Latching Water Solenoid Valve

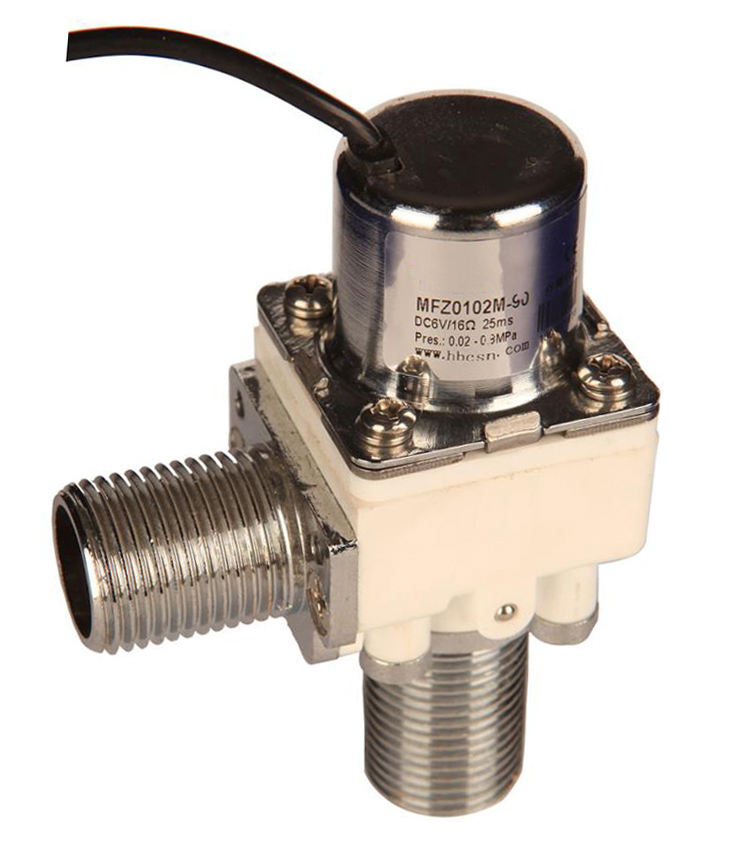

Plastic Latching Water Solenoid Valve


Feature

Continues to hold even after the power is disconnected.

Operate by a pulse signal.

Saving power.

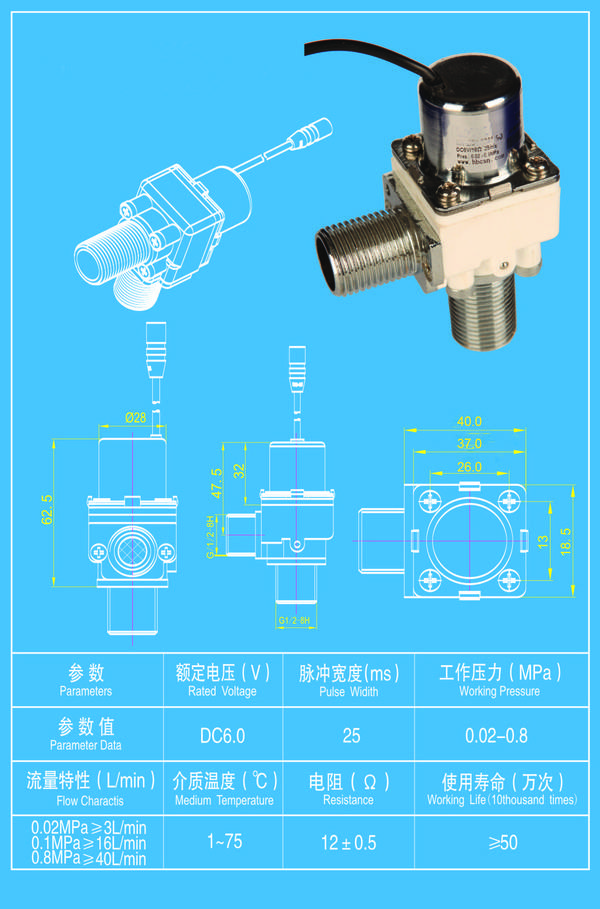

Specification

Rated Voltage:

DC 3V, 4.5V, 6V, 12V

Coil Resistance:

17Ω±1Ω (20 ℃)

Function

Pilot operated

Impulse Width

10ms-30ms

Working Pressure

0.05Mpa-0.8Mpa

Medium Temperature

0-60℃

Reacting Time

open≤0.15s        close≤0.5s

Electric Strength

Between conductor and nonconductor,shall be no puncture and spark in one minute under the condition of AC 1000V voltage.

Insulation Capability

over 100M between conductor and nonconductor.

Flow Capability

0.05mpa≥5L/min,   0.3mpa≥20L/min,   0.8mpa≥28L/min

Working Life

more than 500,000cycles
