Solenoid Valve > Standard Solenoid Valve >

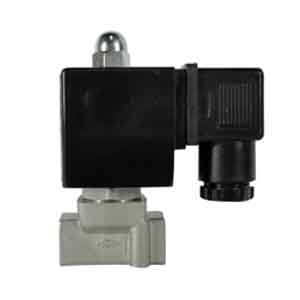

Micro Series Solenoid Valve

Product Features：

1.Patented technology, unique design;

2.Spool for the pilot piston structure, stable performance;

3.Dynamic sealing performance is high, the switch is fast;

4.Autocratic coil, not easy to burn, a long time to stop the action to restart, the same action sensitive;

5.Coil power consumption is small, long life.

Specification：

Diameter range	DN0.5—DN300
Pressure range	0.1-300MPA
Applicable media	water、gas、oil、corrosive fluid etc
Control method	normally open、normally closed、self-sustaining
Body material	stainless steel
Voltage	DC12-220V AC24-380V
Medium temperature	(-200、-50) ~ (+120、+400)℃
Connection method	flange、welding、internal thread(external thread and special interface can be customized or adapter)
Medium viscosity	less than 50 C St(more than required custom)
Protective performance	dust-proof,waterproof,explosion-proof.According to working conditions
Wiring method	terminal type; lead type; plug type
