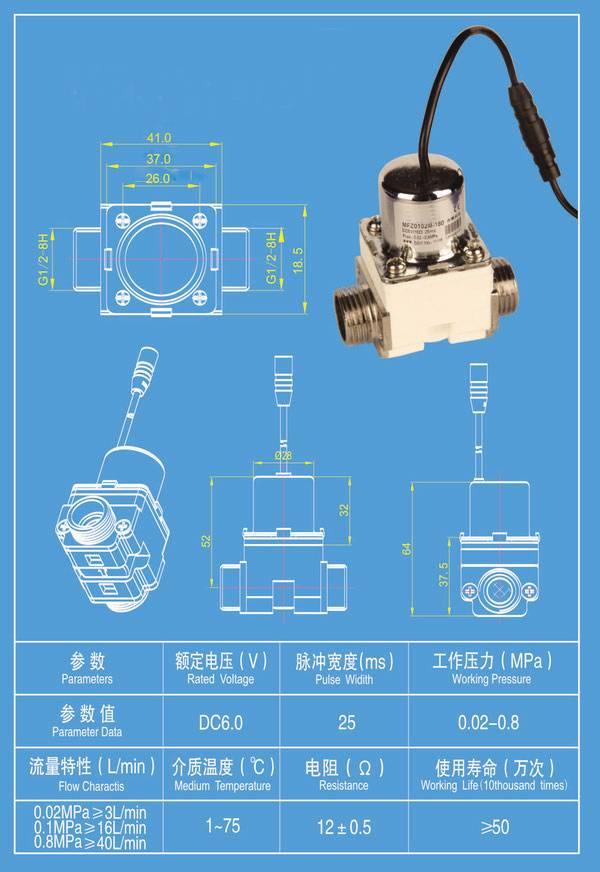

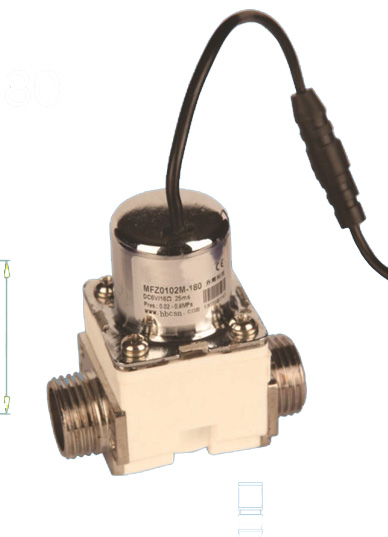

Irrigation Latching Solenoid Valve

Feature

Continues to hold even after the power is disconnected.

Operate by a pulse signal.

Saving power.

Specification

Rated Voltage:	DC 3V, 4.5V, 6V, 12V
Coil Resistance:	17Ω±1Ω (20 ℃)
Function	Pilot operated
Impulse Width	10ms-30ms
Working Pressure	0.05Mpa-0.8Mpa
Medium Temperature	0-60℃
Reacting Time	open≤0.15s close≤0.5s
Electric Strength	Between conductor and nonconductor,shall be no puncture and spark in one minute under the condition of AC 1000V voltage.
Insulation Capability	over 100M between conductor and nonconductor.
Flow Capability	0.05mpa≥5L/min, 0.3mpa≥20L/min, 0.8mpa≥28L/min
Working Life	more than 500,000cycles
