Feature

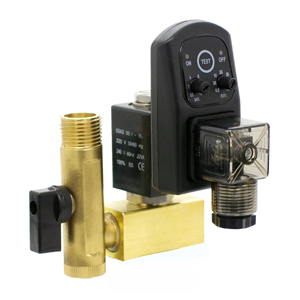

The Drain consists of a solid-state timer coupled to a solenoid valve.
Can be used for compressed air system components.
Drain time and interval time can be adjusted.
Specification
Model name | ST |
Timer | ST-T |
Interval time(OFF time) | 0.5-45 minutes |
Discharge Time(ON time) | 0.5-10 Seconds |
Timer Manual TEST switch | Yes, micro switch |
Voltage | 24-240V AC/DC 50/60Hz |
Current Consumption | 4mA |
Ambient Temperature | -40-60 degree Celsius |
Protection grade | IP65 |
Time shell material | ABS Plastic FR Grade |
Timer Connection | DIN43650A |
Timer Indicators | On/off |
Valve | ST-A |
Type | 2/2 directing acting valve |
Valve port size | 1/4 (recommended), 3/8, 1/2 |
Max working pressure | 16 Bar |
Ambient Temperature | 2-55 degree Celsius |
Max medium tempature | 90 degree Celsius |
Valve | brass,(stainless steel are available) |
Protection grade | IP65 |
Voltage | 24-240V AC/DC |
Votalge range | +/-10% |
Mounting in any position
| Yes |
